Item # bci3456856

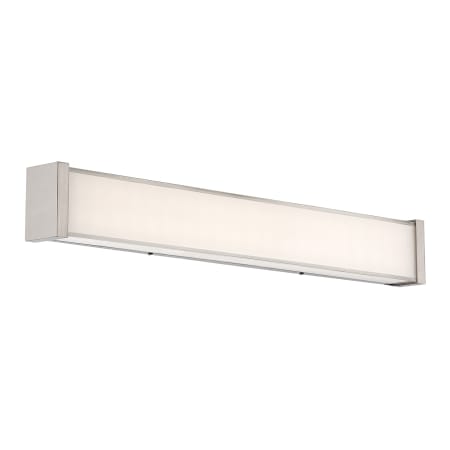

Product Overview
Features
- Mountable vertically or horizontally
- Aluminum construction
- 5mm thick mitered glass shade with ceramic glaze
- Integrated 35 watt LED lighting
- Dimmable with an electronic low voltage (ELV) dimmer switch
- Mountable in different orientations
- ETL rated for damp locations
- Meets California Title 24 energy standards
- ADA compliant
- Five (5) year functional, two (2) year finish warranty
Dimensions
- Height: 3-1/8"
- Width: 22-1/2"
- Extension: 2-1/8"
- Product Weight: 6.9 lbs
- Backplate Height: 11/16"
- Backplate Width: 2-7/8"
Electrical Specifications
- Lumens: 1350
- Color Temperature: 3000K
- Color Rendering Index: 90 CRI
- Wattage: 34.5 watts
- Average Hours: 80000
Additional WAC Lighting Links
This product is listed under the following manufacturer number(s):
- WAC Lighting WS-7322-30-BN
Brushed Nickel - WAC Lighting WS-7322-30-CH
Chrome
Manufacturer Resources
Dimensions and Measurements
Backplate Height
0.68 in.
Backplate Width
2.88 in.
Extension
2.13 in.
Height
3.13 in.
Nominal Height
4 in.
Nominal Width
23 in.
Product Weight
6.9 lbs.
Width
22.5 in.
Included Components
Bulb Included
Yes
Characteristics and Features
Bulb Base
Integrated LED
Bulb Type
LED
Bulb Visible
No
Characteristics
Shaded
Color Temperature
3000K
Dimmable
Yes
Full Backplate
Yes
LED
Yes
Material
Aluminum
Number of Bulbs
1
Number of Light Source(s)
1
Replaceable LED Module
Yes
Reversible Mounting
Yes
RGB
No
Theme
Modern
Electrical and Operational Information
Average Hours
80000 Hours
Color Rendering Index (CRI)
90
Lumens
1350
Power Source
Hardwired
Voltage
120
Wattage
34.5
Watts Per Bulb
34.5
Warranty and Product Information
ADA
Yes
Certifications
ETL
Collection
Svelte
Country Of Origin
China
Dark Sky
No
Energy Star
No
Location Rating
Damp Location
Manufacturer Warranty
2 Year Finish, 5 Year Parts
Series
dweLED
Title 20 Compliant
Yes
Title 24
Yes
