WAC Lighting Lotos LED Canless Recessed Fixture with 6-1/2" Wafer Trims - Fire Rated and Airtight

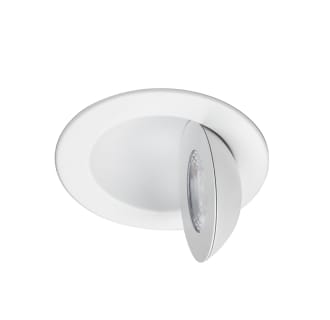

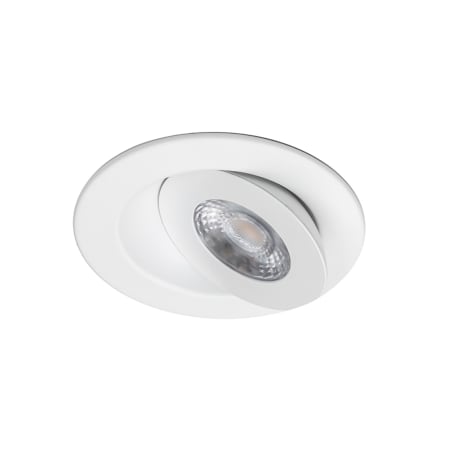

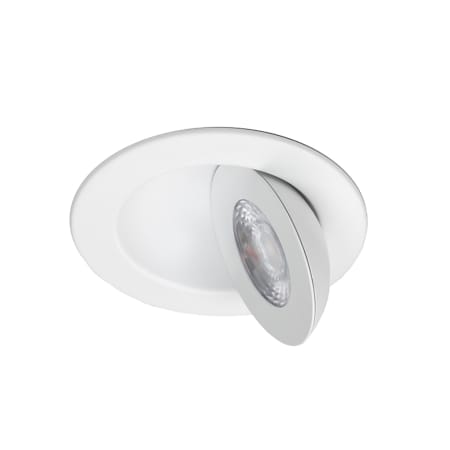

The wafer-thin Lotos LED Recessed Kit with remote driver combines high quality light output and efficiency while eliminating the need for a large housing. This innovative design can be installed easily as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring. Lotos is available in a downlight version for general ambient lighting and an adjustable version with a gimbal that pivots 360 degrees on a hinge, perfect for slope ceilings, general lighting, accenting lighting, and wall washing. The integrated high output and energy efficient Lotos LED module maintains at least 70% light output for 50,000 hours. The Lotos is ideal for shallow ceiling applications with as little as 3-inch plenum clearance. Lotos LED is offered in round and square with 2 inch, 4 inch, and 6 inch aperture options. Use part # R2ESAR-2 or R2ESAR-3 for the multi-light option with 2 and 3 light configurations. Now with a fire rated version, -FWT.

Features:

• Fire rated to reduce the spread of flames and maintain the integrity of the ceiling
• This innovative design can be installed in the shallowest ceiling depths as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring (part # RER-FRAME). 6ft extension cable (Part # RER-6) is available to increase distance from driver to downlight

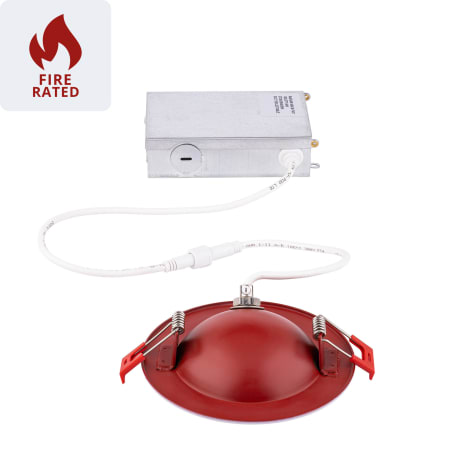

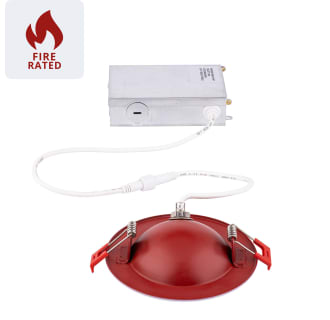

• A Universal Input Voltage Driver (120V-240V-277V) is contained in a steel housing with space for line-voltage electrical connections. Driver housing includes a 6 inch low voltage plug-and-play connector that connects to the downlight
• Housing is designed for use with remodels or new construction
• Insulated ceiling rated and airtight
• Fixture works with shallow ceilings
• Can be converted to be used with pre-existing recessed housings
• Constructed from steel
• Integrated LED lighting
• Capable of being dimmed
• CSA and ETL for wet locations
• Energy Star certified
• Title 20 and Title 24 compliant
• Covered by WAC Lighting's 2 year finish manufacturer warranty

Dimensions:

• Height: 1-9/16"
• Width: 6-1/8"
• Depth: 6-1/8"
• Trim Size: 6-1/2"
• Product Weight: 1.58 lbs
• Aperture: 5-7/8"
• Cutout Size: 5"

Electrical Specifications:

• Wattage: 15 watts
• Number of Light Source(s): 1
• Lumens: 1320
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
• Color Rendering Index: 90 CRI
• Average Hours: 50000
