Item # bci4302150

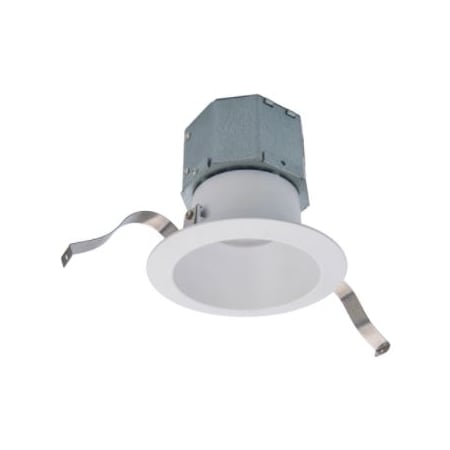

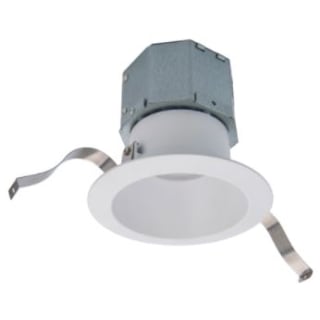

WAC Lighting Pop-in 5" Switchable Color Temperature LED Airtight New Construction Recessed Shower Trim and Housing

Model: R4DRDN-F9CS-WT

$43.95
Finish: Choose Finish
  • Black
    Black
    $42.95
    500 In Stock
  • White
    White
    $43.95
    500 In Stock

Free Shipping on orders over $49.00!

500 In Stock

Product Overview

Pop-in is a powerful 1,000 Lumen minimum profile shallow regressed recessed downlight with a driver and electrical connection junction box attached to the fixture for an easy installation. The new construction version includes a frame-in kit for installation in a new construction application. The remodel version does not includes frame-in kit, but it can be purchased separately (R4DRDN-FRAME). An on-board 5-CCT selectable switch allows you to toggle between different color temperatures to find the perfect setting for your space. Change between 2700K (Warm), 3000K (Warm White), 3500K (White), 4000K (Cool White), or 5000K (Natural White) all at the flick of a switch. The color temperature selectable switch can be accessed during, before, and after installation - it is safely concealed inside the fixture and can be accessed by removing the twist-lock diffuser.

Features:

  • Installs into ceiling thickness between 0.5 inch and 1.5 inch
  • Designed for new construction installations
  • Insulated ceiling rated and airtight
  • Aluminum and steel construction
  • Switchable Color Temperature LED lamping
  • Switch between 2700K, 3000K, 3500K, 4000K, or 5000K
  • Dimmable
  • CSA and ETL rated for wet locations
  • Energy Star certified
  • Title 20 and Title 24 compliant
  • Covered by WAC Lighting's 2 year finish warranty

Dimensions:

  • Height: 4-5/8"
  • Width: 8-5/8"
  • Depth: 8-5/8"
  • Trim Size: 5"
  • Product Weight: 2.01 lbs
  • Aperture: 5"
  • Cutout Size: 4-1/8"

Electrical Specifications:

  • Wattage: 12 watts
  • Number of Light Source(s): 1
  • Lumens: 1080
  • Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
  • Color Rendering Index: 90 CRI
  • Average Hours: 50000

This product is listed under the following manufacturer number(s):

Dimensions and Measurements

Aperture Size
5 in.
Beam Spread
45 Degrees
Cutout Size
4.13 in.
Depth
8.63 in.
Height
4.63 in.
Product Weight
2.01 lbs.
Trim Size
5 in.
Width
8.63 in.

Included Components

Bulb Included
Yes
Shade
Yes

Characteristics and Features

Adjustable Color Temperature
Yes
Airtight
Yes
Bulb Base
Integrated LED
Bulb Type
LED
Characteristics
Shaded
Color Temperature
2700K, 3000K, 3500K, 4000K, 5000K
Dimmable
Yes
Housing Type
New Construction Housing
LED
Yes
Light Direction
Down Lighting
Material
Aluminum, Steel
Number of Light Source(s)
1
Replaceable LED Module
Yes
Retrofit
No
RGB
No
Shade Color
Frosted
Shade Shape
Disk
Shallow Ceiling Compatible
No
Sloped Ceiling Compatible
No
Theme
Transitional
Trim Style
Shower Trims

Electrical and Operational Information

Average Hours
50000 Hours
Color Rendering Index (CRI)
90
Lumens
1080
Power Source
Hardwired
Voltage
120, 240, 277
Wattage
12

Warranty and Product Information

Certifications
CSA, ETL
Collection
Pop-in
Country Of Origin
China
Energy Star
Yes
IC Rating
IC
Location Rating
Wet Location
Manufacturer Warranty
2 Year Finish
Title 20 Compliant
Yes
Title 24
Yes
