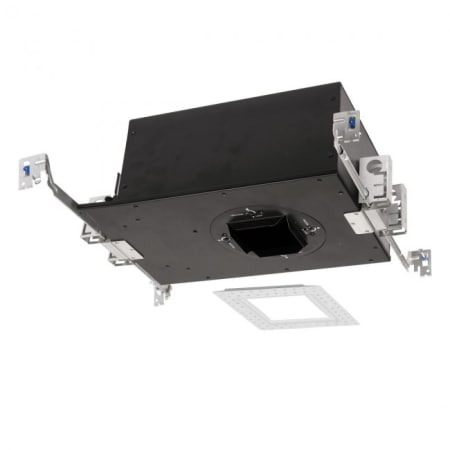

WAC Lighting Volta 2" New Construction, Invisible Trim Housing for Square Trims - IC Rated, Airtight, Chicago Plenum, Emergency Battery Backup

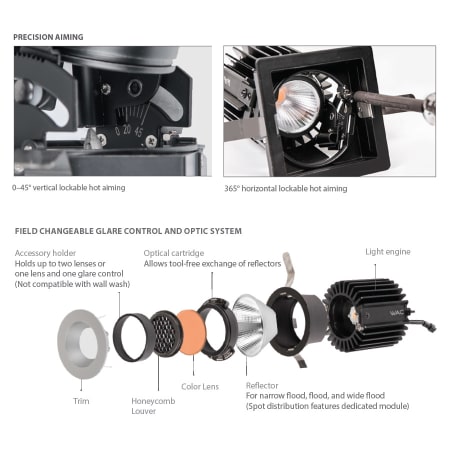

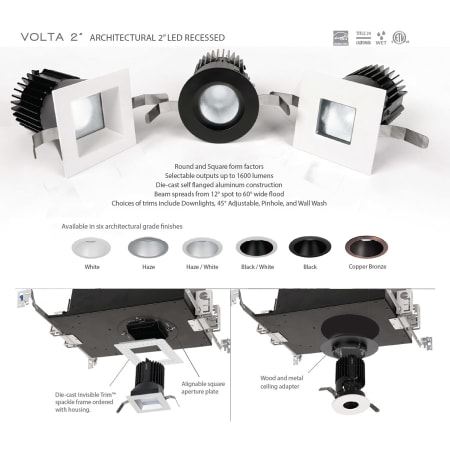

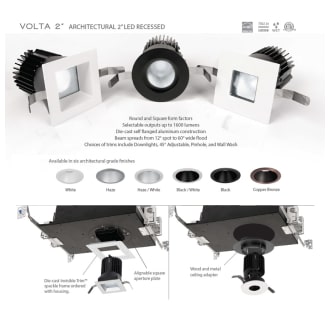

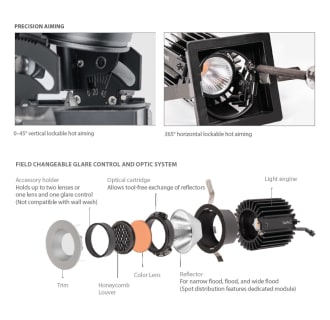

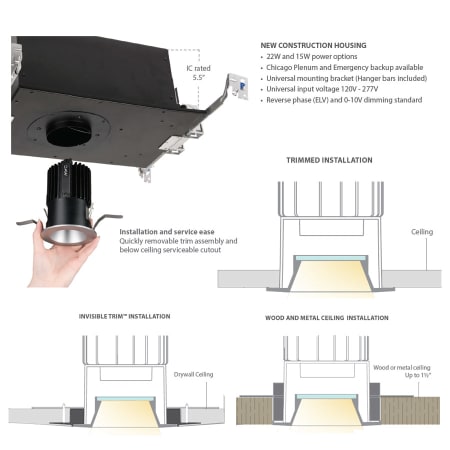

Volta is the quintessential high performance LED architectural recessed downlight. Volta can be specified with variable serviceable drivers to plan your project in accordance with energy and lighting requirements up to 1,500 Lumens from a 2in aperture or up to 3,000 Lumens from the 4.5in. Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight with Emergency backup battery and Chicago Plenum Safety options. Volta trims include an LED Light Engine with a replaceable High Powered LED module and are available in a variety of options including Round, Square, Adjustable, Wall Wash, Shallow Regressed, or a sleek flangeless trim which can be spackled directly up to the aperture. Tool-less in-field adjustable glare control and optic system can be used for louvers, lens, and beam control.

Features

• Comes with Invisible Trim spackle frame
• Includes emergency battery backup
• Trim alignment is quick and simple with built in indexing
• Comes with universal mounting brackets and hanger bars
• Designed for commercial or residential use
• Insulated ceiling rated and airtight
• Sloped ceiling compatible
• Constructed from aluminum
• Smooth and continuous dimming to 1% with an ELV or 0-10V dimmer
• ETL rated for wet locations
• Energy Star approved
• California Title 24 energy compliant
• Fixture is covered by a manufacturer 5 year warranty; finish is covered by a manufacturer 2 year warranty

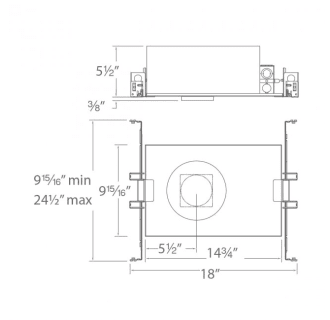

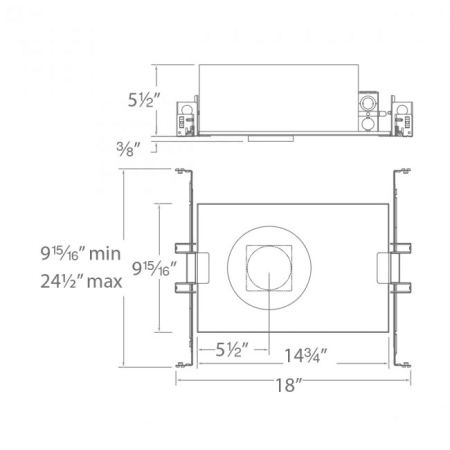

Dimensions

• Trim Size: 2"
• Height: 5-1/2"
• Width: 18-1/16"
• Depth: 11-15/16"
• Product Weight: 7.72 lbs
• Cutout Size: 3-1/2"

Electrical Specifications

• Wattage: 15 watts
• Voltage: 120, 240, and 277 volts
