Item # bci328202

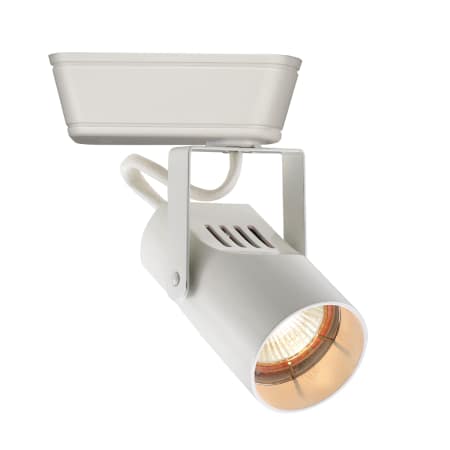

WAC Lighting HT-007 J-Track 7" Tall Low Voltage Track Head - 50 Watts

Model: JHT-007-WT

from the HT-007 Collection
$49.95
Finish: Choose Finish
  • Black
  • Brushed Nickel
  • White
  • Black
    Black
    $49.95
    175 In Stock
  • Brushed Nickel
    Brushed Nickel
    $57.95
    Special Order
  • White
    White
    $49.95
    8 In Stock

Lamping Options: 50W Halogen

8W LED
50W Halogen
75W Halogen

Track Type: J-Track

H-Track
J-Track
L-Track

Free Shipping on orders over $49.00!

8 In Stock

Product Overview

This product has additional required/recommended options. To configure, add to your cart.

  • Track Sections
    Track Sections Required
  • Power Supply
    Power Supply Required
  • Connectors
    Connectors Recommended

Low Voltage track fixture offered in a wide variety of styles and finishes for a multitude of lighting applications in residential, retail, commercial and hospitality environments. Available in H, J/J2, and L style track configurations. Built-in transformer has a 1W minimum load and can be installed with an LED lamp.

Features

  • Swivel yoke for easy aiming
  • 350° horizontal rotation and 90° vertical tilt

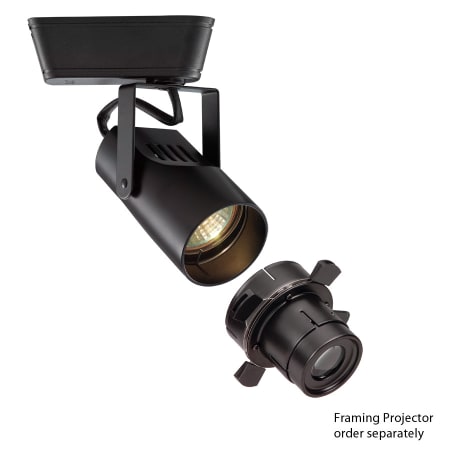

  • Additional accessories available
  • Die-cast aluminum construction
  • Requires (1) 12 volt, 50 watt GU5.3 base MR16 bulb
  • Smooth and continuous dimming to 10% with an ELV Dimmer
  • UL and CUL rated for dry locations
  • Covered under 5 year functional and 2 year finish manufacturer warranties

Dimensions

  • Height: 6-1/2"
  • Width: 4-1/4"
  • Depth: 2-1/4"
  • Product Weight: 1.09 lbs

Track Lighting Specifications

  • System Type: J2-Track and J-Track
  • Accessory Type: Heads
  • Voltage Type: Low Voltage

Electrical Specifications

  • Max Wattage: 50 watts
  • Number of Bulbs: 1
  • Max Watts Per Bulb: 50 watts
  • Bulb Voltage: 12
  • Bulb Base: GU5.3
  • Bulb Shape: MR16
  • Bulb Included: No

This product is listed under the following manufacturer number(s):


*Denotes a finish or option that has been discontinued.

Dimensions and Measurements

Depth
2.25 in.
Height
6.5 in.
Nominal Height
7 in.
Product Weight
1.09 lbs.
Width
4.25 in.

Included Components

Bulb Included
No

Characteristics and Features

Accessory Type
Heads
Bulb Base
GU5.3
Bulb Shape
MR16
Dimmable
Yes
LED
No
Light Direction
Adjustable Lighting
Material
Aluminum
Number of Bulbs
1
Number of Light Source(s)
1
System Type
J2-Track, J-Track

Electrical and Operational Information

Power Source
Hardwired
Voltage
120
Voltage Type
Line Voltage (110-120V)
Wattage
50
Watts Per Bulb
50

Warranty and Product Information

Certifications
UL
Collection
HT-007
Country Of Origin
China
Energy Star
No
Location Rating
Dry Location
Manufacturer Warranty
2 Year Finish, 5 Year Mechanical
Series
WAC Limited
