Item # bci2277054

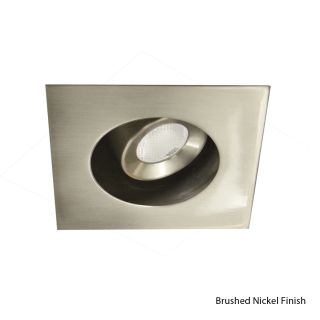

WAC Lighting 2.75" Wide 3500K High Output LED Square Adjustable Under Cabinet Puck Light
Model: HR-LED272R-35-BN
from the LEDme Miniature Recessed Collection
$114.95
Finish: Choose Finish
- Brushed Nickel$114.9510 In Stock
- Gun Metal$114.9575 In Stock
- White$114.95137 In Stock
Trim Style: Square Adjustable
Free Shipping!
Product Overview
This square LED low voltage recessed adjustable trim is designed for use lighting up cabinets or display cases.
Product Features:
- May be dimmed with electronic low voltage (ELV) dimmer
- 40° adjustment from vertical
- 350° horizontal rotation
- Narrow flood beam spread
- Replaceable LED module and lens
- Non-IC Rated - must be kept minimum 3" away from contact with insulation
- UL Rated for dry locations
Product Dimensions:
- Width: 2.75"
- Cutout Hole: 2.5"
- Aperture: 1"
Electrical Specifications:
- Number of Bulbs: 1
- Bulb Type: LED
- Bulb Included: Yes
- Wattage: 3
- CRI: 80
- Color Temperature: 3,500K
- Lumens Output: 170
- Average Hours: 100,000 hour rated life
Transformer Specifications:
- Type: Class 2 remote electronic low voltage transformer is required
- Input Voltage: 120V AC 60Hz
- Output Voltage: 2-5V DC
Construction:
- Made from die-cast aluminum
- Housing made from 20 gauge steel
Mounting:
- Two heavy gauge inner retention clips push out onto mounting surface to hold fixture in place
- Accommodates surfaces up to .75" thick
Additional WAC Lighting Links
This product is listed under the following manufacturer number(s):
- WAC Lighting HR-LED272R-35-BN
Brushed Nickel - WAC Lighting HR-LED272R-35-GM
Gun Metal - WAC Lighting HR-LED272R-35-WT
White
Manufacturer Resources
Dimensions and Measurements
Length
2.75 in.
Product Weight
0.67 lbs.
Trim Size
2 in.
Width
2.75 in.
Included Components
Plug Included
No
Characteristics and Features
Bulb Type
LED
Color Temperature
3500K
LED
Yes
Material
Aluminum
Number of Bulbs
1
Number of Light Source(s)
1
Replaceable LED Module
Yes
Trim Style
Adjustable Trims
Electrical and Operational Information
Average Hours
50000 Hours
Color Rendering Index (CRI)
80
Lumens
170
Power Source
Hardwired
Wattage
4
Watts Per Bulb
4
Warranty and Product Information
Certifications
ETL, UL
Collection
Undercabinet Lights
Country Of Origin
China
Energy Star
No
Location Rating
Dry Location
Manufacturer Warranty
5 Year
