Item # bci1339405

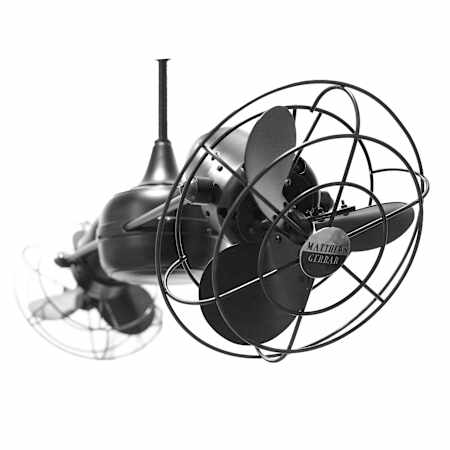

Matthews Fan Company Duplo-Dinamico 13" 6 Blade Indoor Ceiling Fan with Wall Control

Model: DD-BZ-MTL

from the Duplo-Dinamico Collection
$1,868.40 - $2,282.40
Finish: Choose Finish
  • Black
  • Black Nickel
  • Blue
  • Bronzette
  • Brushed Brass
  • Brushed Nickel
  • Brushed Nickel (Damp Location)
  • Chrome
  • Chrome (Damp Location)
  • Copper
  • Green
  • Light Blue
  • Light Purple
  • Polished Brass
  • Red
  • White
  • Black
    Black
    $1,868.40
    3 In Stock
  • Black Nickel
    Black Nickel
    $2,188.80
    Special Order
  • Blue
    Blue
    $2,188.80
    Special Order
  • Bronzette
    Bronzette
    $1,868.40
    6 In Stock
  • Brushed Brass
    Brushed Brass
    $2,260.80
    Special Order
  • Brushed Nickel
    Brushed Nickel
    $2,138.40
    9 In Stock
  • Brushed Nickel (Damp Location)
    Brushed Nickel (Damp Location)
    $2,282.40
    Special Order
  • Chrome
    Chrome
    $1,987.20
    2 In Stock
  • Chrome (Damp Location)
    Chrome (Damp Location)
    $2,131.20
    Special Order
  • Copper
    Copper
    $2,116.80
    4 In Stock
  • Green
    Green
    $2,188.80
    Special Order
  • Light Blue
    Light Blue
    $2,188.80
    Special Order
  • Light Purple
    Light Purple
    $2,188.80
    Special Order
  • Polished Brass
    Polished Brass
    $2,188.80
    Special Order
  • Red
    Red
    $2,188.80
    Special Order
  • White
    White
    $1,868.40
    Special Order

Special Order

Product Overview

This product has additional required/recommended options. To configure, add to your cart.

  • Downrod
    Downrod Recommended

Few designs can match the timeless and sophisticated aesthetic of the Duplo-Dinamico rotational fan. Other manufacturers have tried to reproduce this unique design, though all have proven to be of lesser quality and durability. The fan heads can be infinitely positioned in 180-degree arcs for optimum air movement; the greater the angles of the motors to the horizontal support rods (up or down), the faster the axial rotation. A slow, controlled axial rotation is achieved by both fan head position and fan blade speed.

Features:

  • Constructed from aluminum and steel
  • Fan is controllable by a wall control (included)
  • Includes a 10" downrod
  • Rated for installation in damp locations, dry locations
  • Covered by Matthews Fan Company's limited lifetime manufacturer warranty

Dimensions:

  • Height: 9"
  • Width: 36"
  • Product Weight: 21 lbs
  • Canopy Width: 5-1/2"

Blade Specifications:

  • Number of Blades: 6
  • Blade Span: 13"
  • Blades Included: Yes
  • Blade Pitch: 31°
  • Reversible Blades: No
  • Fan Blade Material: Aluminum

Motor Specifications:

  • Speeds: 3
  • CFM:
    • High: 2274
    • Medium: 1789
    • Low: 1240
  • RPM:
    • High: 1109
    • Low: 598

Electrical Specifications:

  • Light Kit Included: No
  • Bulb Included: No
  • Max Wattage: 104 watts
  • Voltage: 110 and 220 volts

Dimensions and Measurements

Blade Pitch
31 Degrees
Blade Span
13 in.
Canopy Width
5.5 in.
CFM (High)
2274
CFM (Low)
1240
Diameter
36 in.
Downrod Size(s)
10 in.
Height
9 in.
Nominal Height
9 in.
Nominal Width
36 in.
Product Weight
21 lbs.
Width
36 in.

Included Components

Blades Included
Yes
Blades Sold Separately
No
Controller Included
Yes
Downrod(s) Included
Yes
Includes Receiver
Yes
Light Kit Included
No
Shade
No

Characteristics and Features

Base Color
Nickel, Copper, Black, Purple, Green, Blue, Chrome, Bronze, Orange, Gold, Red
Blade Finish
Black, Blue, Brass, Bronze, Chrome, Copper, Gold, Green, Purple, Red, White
Bulb Visible
No
Control Type
Wall
Fan Blade Material
Aluminum
Fan Type
Hanging
Light Kit Compatible
Yes
Material
Aluminum, Steel
Motor
AC Induction
Number of Blades
6
Reversible Blades
No
Reversible Motor
No
Shade Color
Blue
Sloped Ceiling Compatible
Yes
Smart Home
No
Specialty Fan Type
Dual Ceiling Fan
Style
Retro
Theme
Art Deco, Modern
Vintage Edison Bulb
No

Electrical and Operational Information

Amperage
4
Energy Efficiency (CFM / Watt)
22
Power Source
Hardwired
RPM (High)
1109
RPM (Low)
598
Speeds
3
Voltage
110, 220
Voltage Type
Commercial Voltage (125V+), Line Voltage (110-120V)
Wattage
104

Warranty and Product Information

Certifications
UL
Collection
Duplo-Dinamico
Country Of Origin
Brazil
Energy Star
No
Location Rating
Damp Location, Dry Location
Made in America
Yes
Manufacturer Warranty
Limited Lifetime
