Item # bci3526809

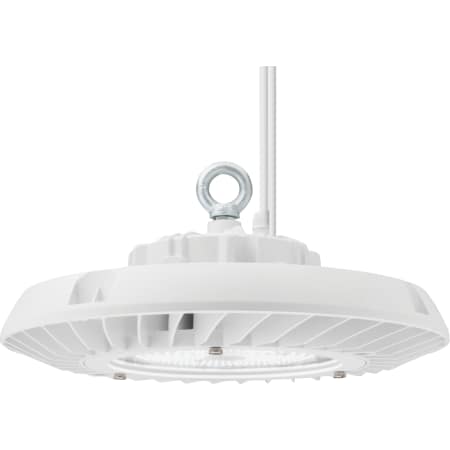

Lithonia Lighting Contractor Select JEBL 13" Wide Integrated LED High Bay - 12000 Lumens

Model: JEBL 12L 40K 80CRI WH

from the JEBL Collection
$142.52
Finish: Choose Finish
  • Matte White / 5000K
  • Matte White / 5000K
    Matte White / 5000K
    $142.52
    1613 In Stock

Lumens: 12000

12000
180002400030000

Special Order

Product Overview

Features

  • Capable of mounting up to 30 feet high
  • Removable quick-disconnect driver housing allows for easy field replacement of the LED driver, eliminating the need to replace entire fixture
  • Robust 6kV surge protection standard, meeting the NASI standard for industrial environments
  • Provides uniform light distribution
  • This fixture is designed to be suspended from the eye bolt or surface mounted (surface mount sold separately)
  • Constructed from diecast aluminum
  • Includes a .16" thick clear tempered glass lens
  • Integrated LED lighting
  • Adjustable cord included
  • 120° beam spread
  • Suitable for commercial locations
  • Capable of being dimmed
  • UL and CUL rated for wet locations
  • Covered under a 5 year limited manufacturer warranty

Dimensions

  • Height: 5"
  • Width: 13"
  • Depth: 13"
  • Product Weight: 9.7 lbs
  • Wire Length: 17-3/4"

Electrical Specifications

  • Wattage: 92.4 watts
  • Lumens: 13286
  • Color Temperature: 4000K or 5000K
  • Color Rendering Index: 80CRI
  • Average Hours: 54000

This product is listed under the following manufacturer number(s):


*Denotes a finish or option that has been discontinued.

Dimensions and Measurements

Beam Spread
120 Degrees
Depth
13 in.
Height
5 in.
Nominal Height
5 in.
Nominal Width
13 in.
Product Weight
9.7 lbs.
Width
13 in.
Wire Length
17.75 in.

Included Components

Bulb Included
Yes
Shade
Yes

Characteristics and Features

Bulb Base
Integrated LED
Bulb Type
LED
Bulb Visible
No
Color Temperature
4000K, 5000K
Dimmable
Yes
Energy Efficient
Yes
Glass Features
Clear Glass
Hanging Options
Cords
LED
Yes
Light Direction
Down Lighting
Material
Aluminum
Number of Bulbs
1
Number of Light Source(s)
1
Shade Color
Clear
Shade Material
Glass
Shade Shape
Disk
Theme
Industrial

Electrical and Operational Information

Average Hours
54000 Hours
Color Rendering Index (CRI)
80
Lumens
13286
Power Source
Hardwired
Voltage
120, 277
Voltage Type
Commercial Voltage (125V+), Line Voltage (110-120V)
Wattage
92.4

Warranty and Product Information

Approved for Commercial Use
Yes
Certifications
UL
Collection
JEBL
Country Of Origin
China
Energy Star
No
Location Rating
Wet Location
Manufacturer Warranty
5 Year Limited
