Item # bci4293381

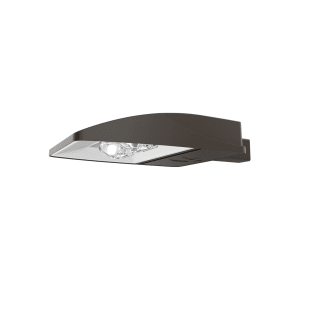

Lithonia Lighting Contractor Select ESX1 Adjustable Lumen (8000/14000) 4000K LED Commercial Area Light

Model: ESX1 LED P2 40K R3 MVOLT UPA BLS DDBXD M2

$262.87
Finish: Choose Finish
  • Dark Bronze / 4000K
    Dark Bronze / 4000K
    $262.87
    537 In Stock

Lumens: 8000/14000

8000/14000
21000/25000

Free Shipping!

537 In Stock

Product Overview

The ESX LED area luminaire provides the combination of best product value, best price and best delivery. ESX is ideal for one-for-one replacement of HID area lighting and provides up to 76% energy savings, long service life and fast payback. All ESX luminaires feature adjustable light output, providing two light levels from one product, allowing greater flexibility while helping reduce inventory costs. The luminaires also feature a reversible arm that allows for mounting on both round and square poles.

Features:

  • UL listed to meet US and Canadian standards, suitable for wet locations, rated for -40°C minimum ambient and listed as a DesignLights Consortium (DLC) qualified product

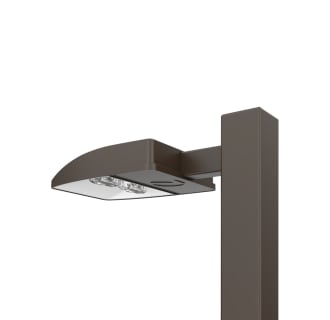

  • MVOLT driver operates on any line voltage from 120-277V (50/60Hz) and can be mounted using the universal mounting arm allowing it to mount on both round and square poles, with a minimum of 3.5 inch pole or larger, a wall mount bracket is also available
  • Exterior parts are protected by a Durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering, the result is a high-quality finish that is warrantied not to crack or peel
  • Constructed of aluminum
  • For use in commercial settings
  • Integrated 98 watt LED lighting
  • Capable of being dimmed
  • Rated for wet locations
  • Covered under a 5 Year Limited manufacturer warranty

Dimensions:

  • Height: 21-11/16"
  • Width: 12"
  • Depth: 2-7/8"
  • Product Weight: 9.9 lbs

Electrical Specifications:

  • Wattage: 98 watts
  • Number of Light Source(s): 1
  • Lumens: 8000-14000
  • Color Temperature: 5000K
  • Color Rendering Index: 70 CRI
  • Average Hours: 60,000

This product is listed under the following manufacturer number(s):


*Denotes a finish or option that has been discontinued.

Manufacturer Resources

Dimensions and Measurements

Depth
2.9 in.
Height
21.7 in.
Nominal Width
12 in.
Product Weight
9.9 lbs.
Width
12 in.

Included Components

Bulb Included
Yes

Characteristics and Features

Bulb Base
Integrated LED
Bulb Type
LED
Bulb Visible
Yes
Color Temperature
4000K, 5000K
Dimmable
Yes
LED
Yes
Light Direction
Down Lighting
Material
Aluminum
Number of Light Source(s)
1
Photocell
No

Electrical and Operational Information

Average Hours
60000 Hours
Color Rendering Index (CRI)
70
Lumens
14000, 8000
Voltage
120, 277
Voltage Type
Commercial Voltage (125V+), Line Voltage (110-120V)
Wattage
98

Warranty and Product Information

Approved for Commercial Use
Yes
Certifications
UL
Collection
Contractor Select
Country Of Origin
China
Location Rating
Wet Location
Manufacturer Warranty
5 Year Limited
