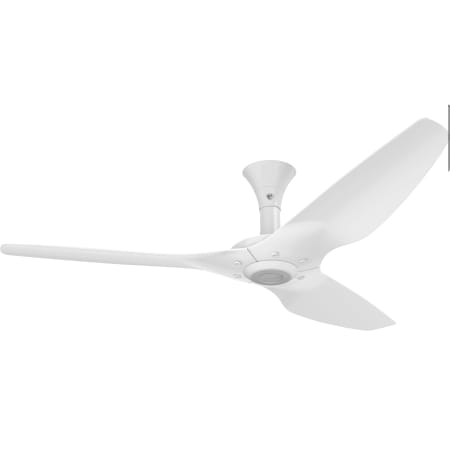

Big Ass Fans Haiku 60" Low Profile 3 Blade Indoor Smart Ceiling Fan with Remote Control and White Motor / Body

Model: MK-HK4-052400A259F221G10

$1,750.00 - $2,000.00
Finish: Choose Finish
  • White
    White
    $1,750.00
    Made To Order
  • White / Brushed Aluminum
    White / Brushed Aluminum
    $2,000.00
    Made To Order
  • White / Driftwood
    White / Driftwood
    $2,000.00
    Made To Order
  • White / Natural Bamboo
    White / Natural Bamboo
    $2,000.00
    Made To Order

Blade Span: 60"

52"
60"

Location Rating: Indoor

Indoor
Covered Outdoor

Mounting Options: Low Profile

Special Order

Product Overview

This product has additional required/recommended options. To configure, add to your cart.

Bring personalized style and comfort to your home, business or public spaces with the redesigned Haiku® from Big Ass Fans. With hand-balanced airfoils and automated SenseME™ technology on all models, Haiku’s intuitive airflow works to keep you cool and energy costs low. Available together or separately, LED downlight and color-changing Chromatic Uplight options make it easy to see your space in a whole new light. Refresh your favorite indoor and covered outdoor spaces with the whisper-quiet operation and world-class airflow from the world’s most stylish smart fan.

Features

  • Finish and Blade Variations (aircraft-grade aluminum or Moso bamboo airfoils):
    • White mount finish includes White aluminum blades
    • White mount finish includes Brushed Aluminum aluminum blades
    • White mount finish includes Natural bamboo blades
    • White mount finish includes Driftwood aluminum blades
  • Base mount finishes also available: Black, Satin Nickel, Oil Rubbed Bronze
  • Fan is controllable by a remote control (included)
  • Able to be mounted on low ceilings
  • Includes: SenseME™ environmental sensors, mobile app control, and voice integration on indoor and covered outdoor models
  • Includes: Sleep, Timer, Whoosh®, and Fan Eco modes
  • Includes: Bluetooth remote control (TM3438)
  •      Adjust your fan’s speed, change lighting options, or engage Timer, Whoosh, and Sleep modes
  •      Remote includes a wall mount for secure placement
  • Manufactured in America
  • Uses an energy efficient reversible 16 watt DC motor
  • LED downlight available as an optional accessory
  • CUL, ETL, and CSA rated for dry locations
  • California Title 24 energy compliant
  •  Warranty
    • Residential: 5 years
    • Non-residential: 3 years

Dimensions

  • Blade Span: 60"
  • Height: 12-5/16"
  • Width: 60"
  • Canopy Diamter: 6"
  • Product Weight:
    • with aluminum foils: 18.5 lbs.
    • with bamboo foils: 16 lbs.

Smart Mode Technology

  • SenseME™: offers automated modes, increased energy efficiency, and motion detection for all indoor and covered outdoor models.
  • Fan Eco: optimizes fan efficiency by balancing airflow and energy use
  • Schedule: ability to control the fan at a pre-scheduled time
  • Sleep: reduces fan speed over a specified period of time
  • Whoosh: simulates a natural breeze by continually varying the fan speed up and down

Mounting

  • Low Profile Mount
    • Flat ceilings as low as 8 - 9.5 ft.
    • Hanging Height: 12-1/4"
  • Other available mounts (not included):
    • Universal Mount
    • Sloped or Flat ceilings from 9-14+ ft.
    • (1) 12" extension tube (optional: 7", 20", 32", 48", 60")

Blade Specifications

  • Number of Blades: 3
  • Blades (Airfoils) Included: Yes
  • Reversible Blades: No
  • Fan Blade Material: Aluminum or Bamboo

Motor Specifications

  • Speeds: 7
  • CFM (High)
    • Aluminum Blades: 5,971 cfm
    • Bamboo Blades: 6,256 cfm
  • CFM (Low):
    • Aluminum Blades: 403 cfm
    • Bamboo Blades: 479 cfm
  • RPM on high: 174
  • Reversible Motor: Yes
  • Motor Wattage (Min / Max)
    • Aluminum blades: 2.4w / 15.8w
    • Bamboo blades: 2.3w / 15.6w

Optional Accessories

  • Wired Bluetooth Wall Controller (C-BTWC-03-04-00-US)
  • Indoor LED downlight kit (010593)
  •      Includes: both clear and smoky lenses to suite any decor
  •      Controlled by SenseME technology
  •      16 unique light settings
  •      rated for 50,000 operating hours (at eight hours of daily use, that's over 17 years)

This product is listed under the following manufacturer number(s):


*Denotes a finish or option that has been discontinued.

Dimensions and Measurements

Blade Span
60 in.
Canopy Width
6 in.
CFM (High)
5971, 6256
CFM (Low)
403, 479
Downrod Size(s)
6 in.
Height
12.3 in.
Product Weight
15.5, 18.4 lbs.
Width
60 in.

Included Components

Blades Included
Yes
Controller Included
Yes
Downrod(s) Included
Yes
Includes Receiver
Yes
Light Kit Included
No

Characteristics and Features

App Compatibility
Amazon Alexa, Google Assistant, Haiku by BAF
Blade Finish
White, Medium Wood, Light Wood, Silver
Characteristics
Mixed Metals, Bamboo
Control Type
Remote
Device Compatibility
Android, iPhone
Fan Blade Material
Aluminum, Bamboo
Fan Type
Hugger
Light Direction
Down Lighting
Light Kit Compatible
Yes
Material
Aluminum
Motor
DC Motor, EC Motor
Number of Blades
3
Reversible Blades
No
Reversible Motor
Yes
Sloped Ceiling Compatible
Yes
Smart Home
Yes
Theme
Contemporary, Modern
Wireless Communication
WiFi

Electrical and Operational Information

Energy Efficiency (CFM / Watt)
364, 398
Power Source
Hardwired
RPM (High)
175
Speeds
7
Voltage
100, 240
Wattage
15.6, 19.2

Warranty and Product Information

Certifications
ETL
Collection
Haiku
Country Of Origin
USA
Energy Star
Yes
Location Rating
Dry Location
Made in America
Yes
Manufacturer Warranty
5 Year
Title 20 Compliant
Yes
Title 24
Yes
