Item # bci3507384

The Fanimation MAD8152BLW has been discontinued

** See similar or replacement items below **

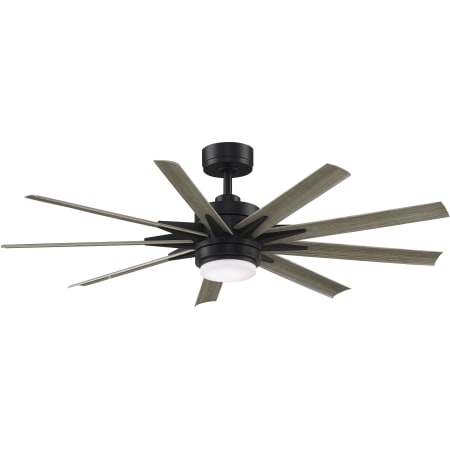

Fanimation Odyn Custom 56", 64", or 72" 9 Blade Outdoor DC Ceiling Fan - Blades Not Included

Model: MAD8152BLW

from the Odyn Custom Collection
$599.98
We still have product details and accessories, scroll down to see them!

Product Overview

This product has additional required/recommended options. To configure, add to your cart.

  • Fan Blades
    Fan Blades Recommended
  • Controls
    Controls Recommended
  • Ceiling Adapter
    Ceiling Adapter Recommended
  • Down Rods
    Down Rods Recommended

Features

  • TR205 hand-held remote control included
  • Fresh Air, Safe Exit, Timer and Home Away features
  • fanSync compatible
  • Fan is controllable by a remote control (included)
  • Includes (1) 6" downrod
  • Integrated LED lighting
  • Uses an energy efficient 37 watt DC motor
  • Rated for wet locations
  • Energy Star approved
  • Covered under a limited lifetime warranty
  • Fan width depends on blade selection
  • Blades sold separately

Dimensions

  • Blade Span: 56"
  • Height: 16-5/8"
  • Width: 56"
  • Product Weight: 25.36 lbs

Blade Specifications

  • Number of Blades: 9
  • Blades Included: No
  • Blade Pitch: 12 Degrees (The Angle of Attack of the Blades; Steeper Blades Move More Air)

Motor Specifications

  • Speeds: Variable
  • CFM high: 10742, medium: 7904, low: 4303 (cubic feet per minute)
  • RPM high: 86, medium: 59, low: 29
  • Reversible Motor: Yes
  • Motor Wattage: 37 watts

Electrical Specifications

  • Wattage: 18 watts
  • Lumens: 1400
  • Color Temperature: 3000K
  • Color Rendering Index: 90CRI

This product is listed under the following manufacturer number(s):

Manufacturer Resources

Dimensions and Measurements

Blade Pitch
12 Degrees
Blade Span
56, 64, 72 in.
CFM (High)
10742
CFM (Low)
4303
Downrod Size(s)
6 in.
Height
16.64 in.
Nominal Height
17 in.
Nominal Width
56 in.
Product Weight
25.36 lbs.
Width
56, 64, 72 in.

Included Components

Blades Included
No
Bulb Included
Yes
Controller Included
Yes
Downrod(s) Included
Yes
Light Kit Included
Yes
Shade
Yes

Characteristics and Features

Bulb Base
Integrated LED
Bulb Type
LED
Bulb Visible
No
Color Temperature
3000K
Control Type
Remote
Dimmable
No
Energy Efficient
Yes
Fan Type
Hanging
Glass Features
Frosted Glass
LED
Yes
Light Direction
Down Lighting
Light Kit Compatible
Yes
Motor
DC Motor
Number of Blades
9
Number of Light Source(s)
1
Reversible Motor
Yes
Shade Color
White
Shade Material
Glass
Shade Shape
Dome
Theme
Contemporary

Electrical and Operational Information

Color Rendering Index (CRI)
90
Energy Efficiency (CFM / Watt)
289
Lumens
1400
Power Source
Hardwired
RPM (High)
86
RPM (Low)
29
Voltage
120
Voltage Type
Line Voltage (110-120V)
Wattage
37, 18

Warranty and Product Information

Collection
Odyn Custom
Country Of Origin
China
Energy Star
Yes
Location Rating
Wet Location
Manufacturer Warranty
Limited Lifetime
